Description

NOTE: This is a 3d printed!!! I make them per order!! So there will be a 3 days ( or sooner) delay after payment is received before it is shipped!!!

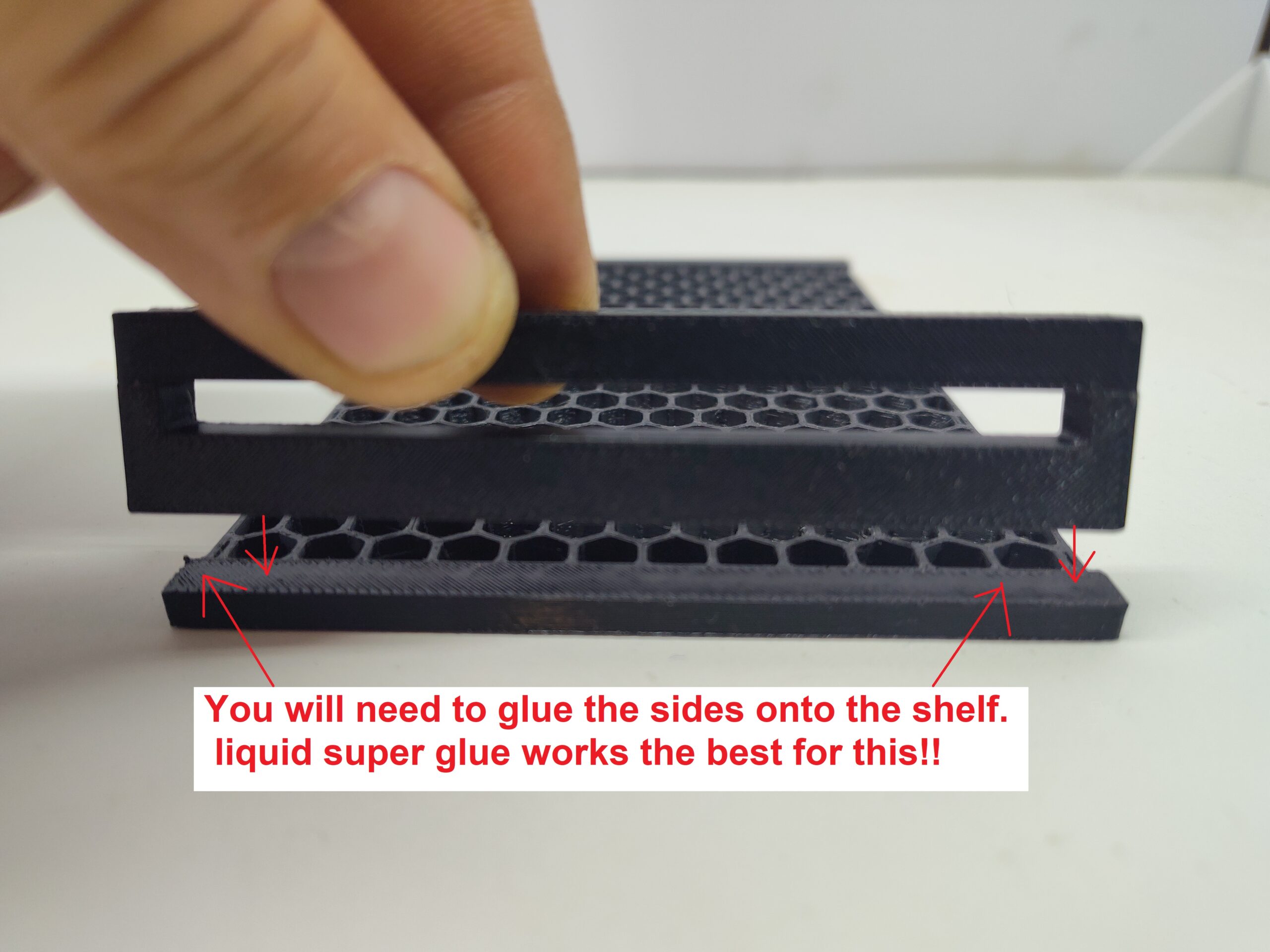

NOTICE – to keep price and shipping cost down. YOU will need to glue shelf sides onto shelf!! liquid super glue works the best for this!! look at picture!!!

---

How to pay:

Zelle payment are accepted, More info and how to do that here:

https://www.gmrstwowayradio.com/forum/viewtopic.php?t=175

OR

PayPal payment are accepted,  (sorry there will be a $6.00 add on fee for using this service), email me and I will send you the info on how to do that: [email protected]

---

I am NOT responsible for lost or stolen packages!!!

All shipments are shipped using USPS with tracking number to the address you provided when ordering, SORRY can NOT ship to P.O box address!!!

I have no control over your package once it is handed/placed/given to the USPS!!!

If the tracking link on my site don’t work or update, you can copy and paste the tracking number on USPS website, click here to do that!

---

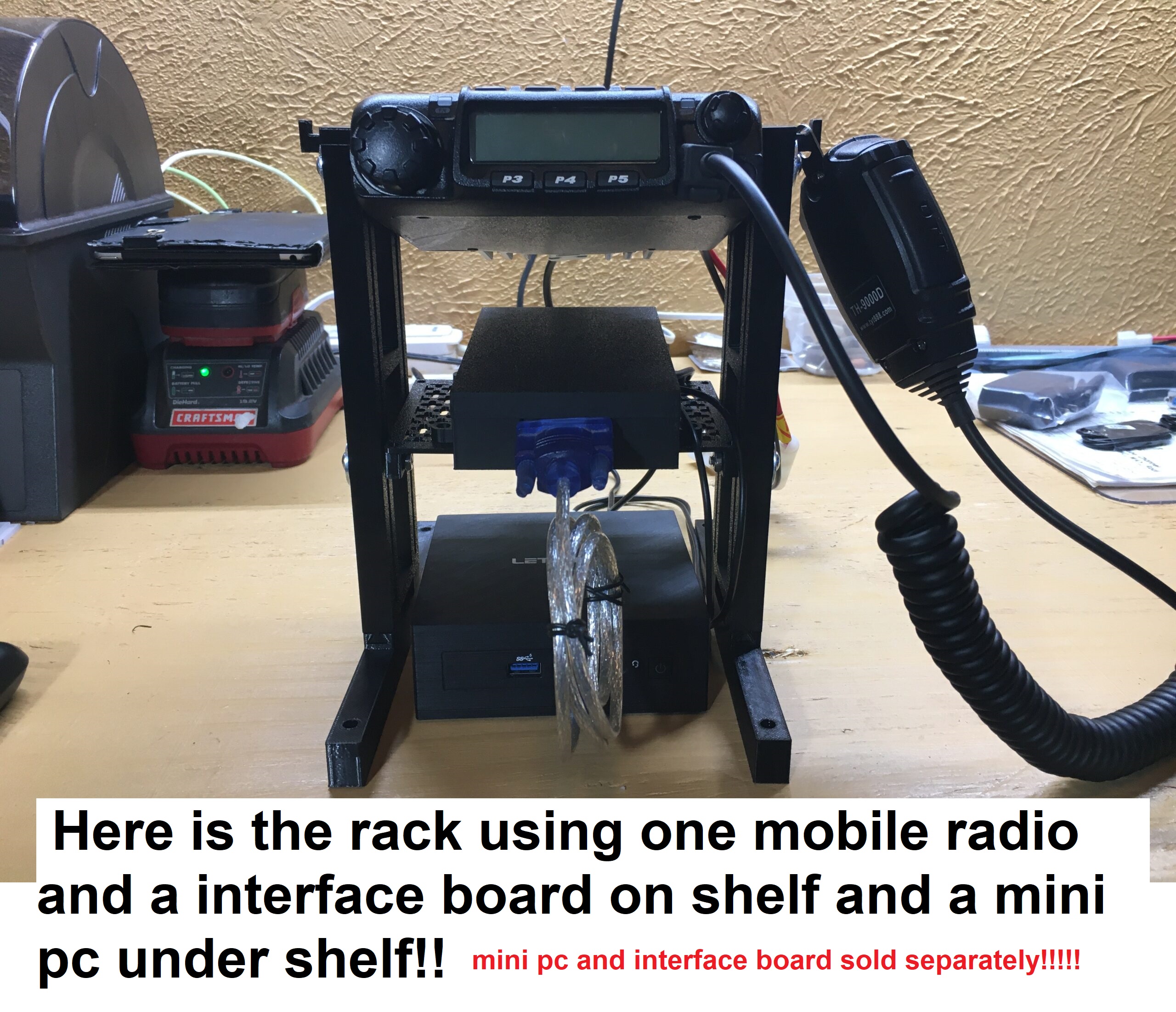

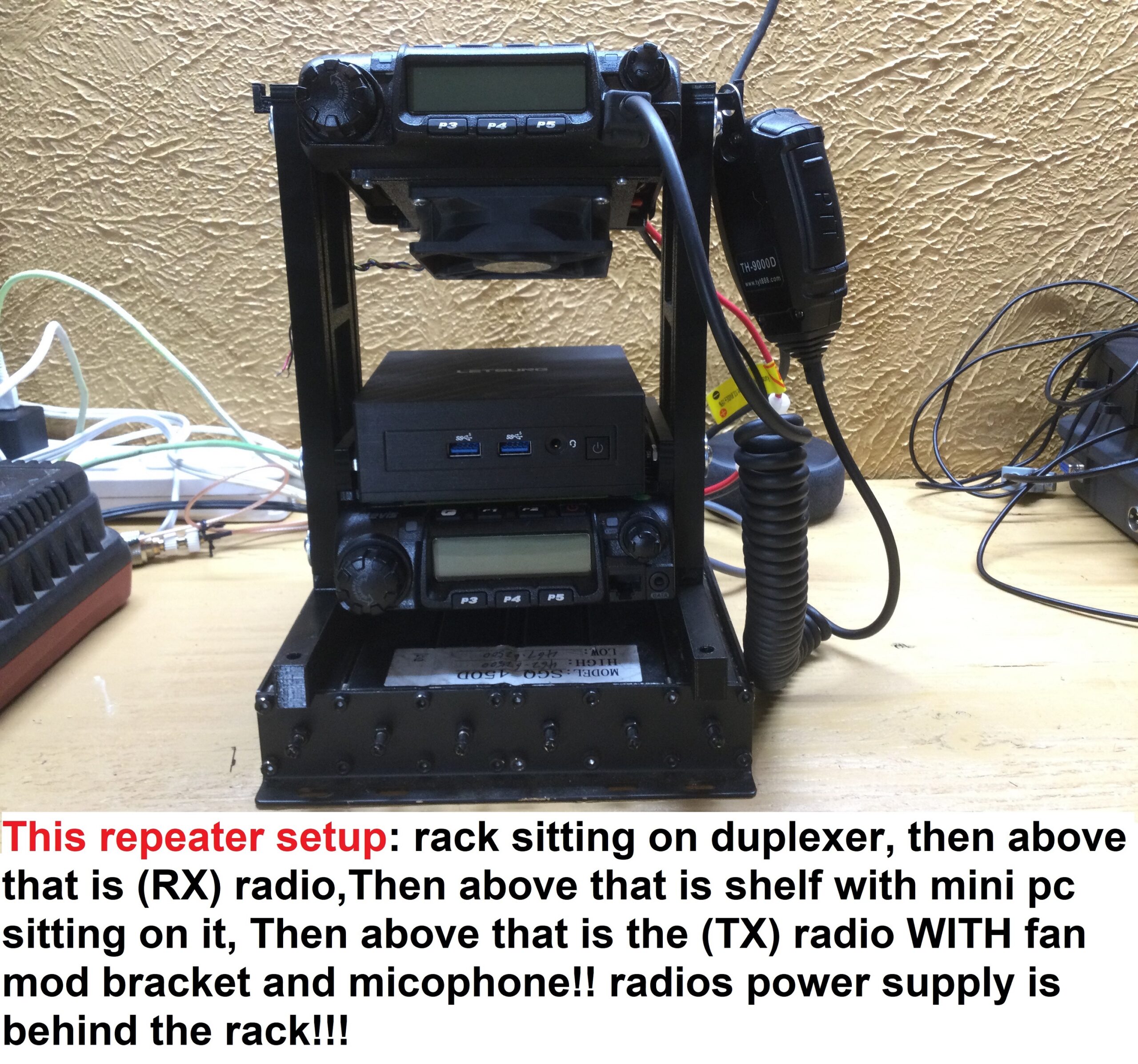

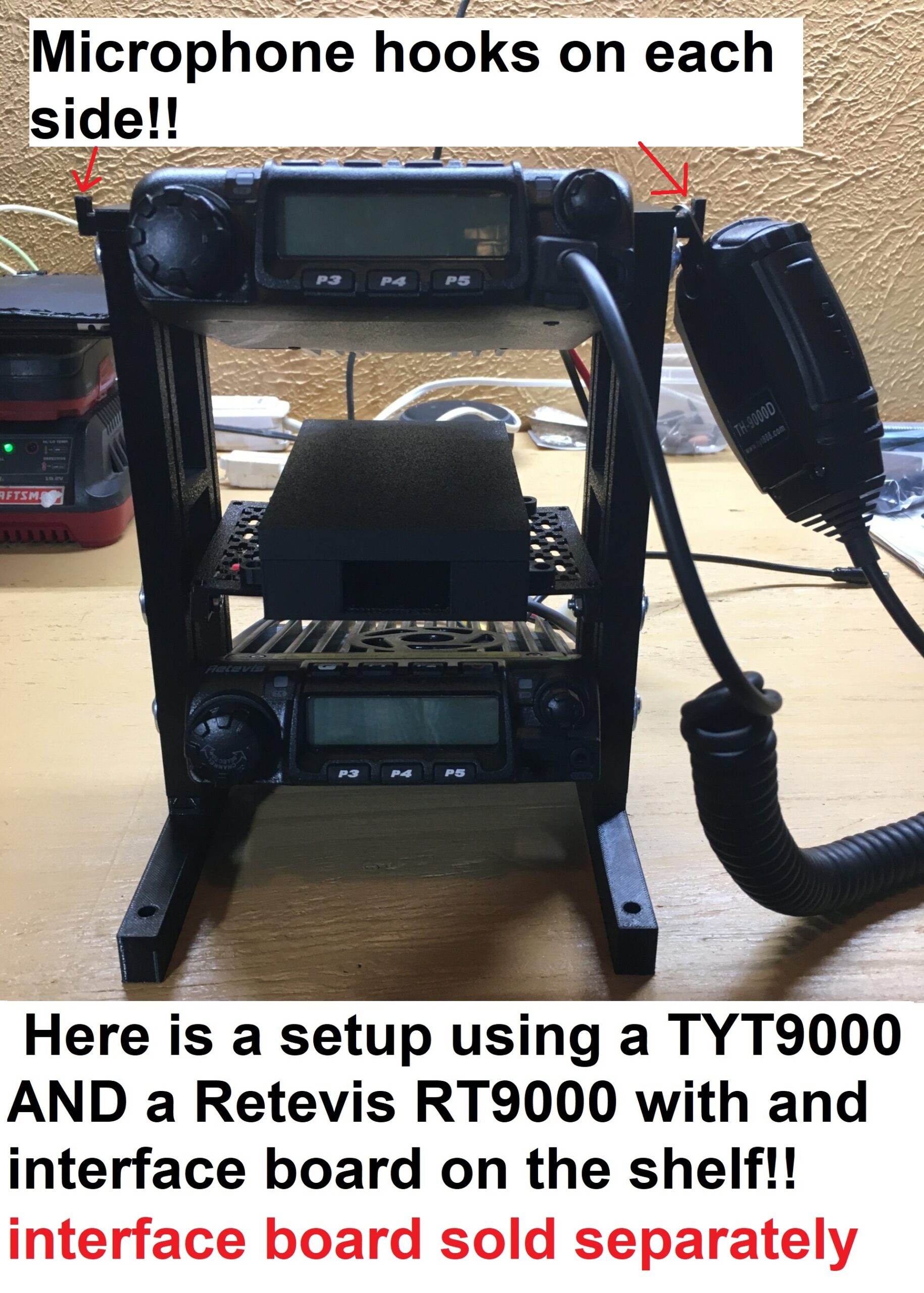

This is a repeater and/or base station rack that can be used to install a mobile radio like the TYT9000 or Retevis RT9000. You can use it for one or two radios!! The shelf that comes with this can be used to hold a mini pc, Raspberry Pi, ID-O-Matic or even another radio!! If you need more than one shelf or need the shelf long than 5.5 inches, let me know!!! If you want to mount a different radio, check that radio mounting hole brackets to see if the spacing is about 2 inches apart from center to center of the holes!!!

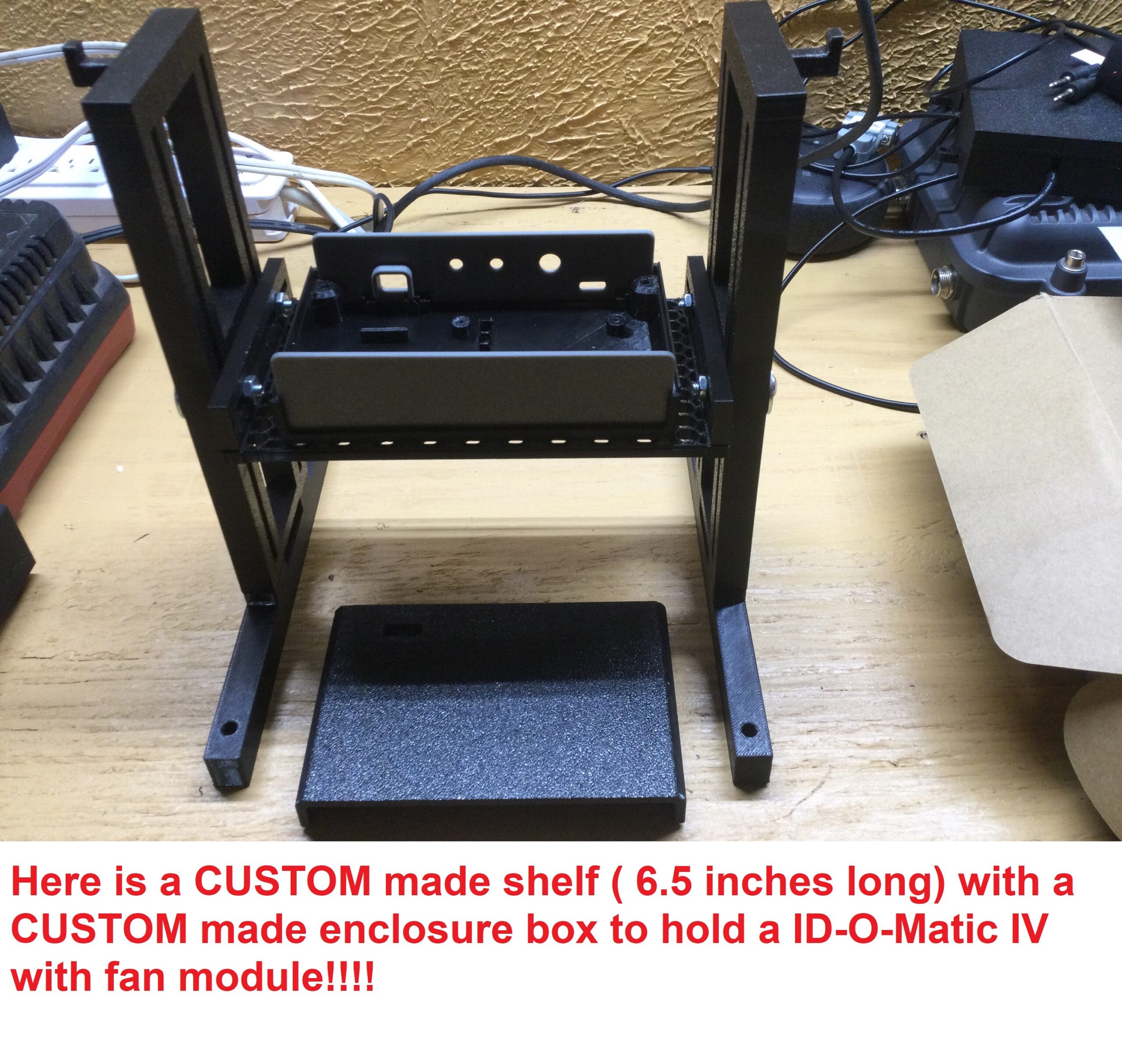

NOTE: look at ALL PICTURES, but the last picture shows a CUSTOM built rack system that I did with an enclosure box for an ID-O-Matic with fan relay module!!! ID-O-Matic enclosure box is sold separately!!!!

Sorry bolts, nuts, washers for the radios, shelf, fan mod bracket or fan, radios, interface boards, etc. will NOT be included and are sold separately, your local hardware store should have theses if not you will have to order them online, I list the sizes that are need below!!!!

---

Package includes:

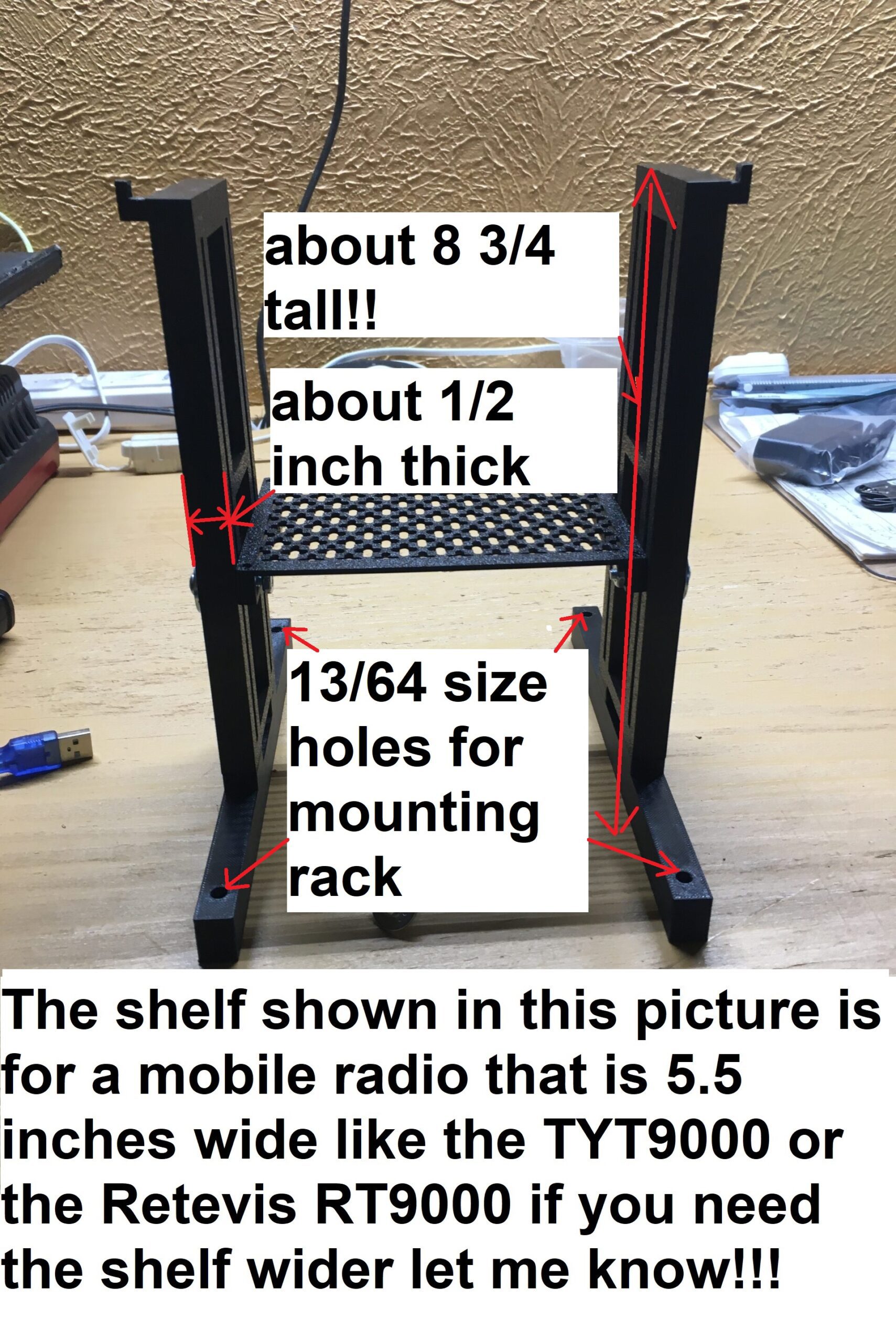

(1) Right and (1) left side rack (rack stand is about 8 3/4 inches tall and about 1/2 thick) the hooks on top are microphone holders and there are 4 13/64 size holes in the stand so it can be mounted if needed!!

If you select these options above, then:

(1) shelf (which the default setting (above) is 5 1/2 inches long which will fit nicely with a 5 1/2 inch wide mobile radio like the TYT9000 or RT9000 (look at picture) if you need a longer shelf enter that info above I will do this at no additional cost!!! The shelf can be used to hold mini pc or Raspberry Pi or ID-O-Matic, etc if needed, which is sold separately!!

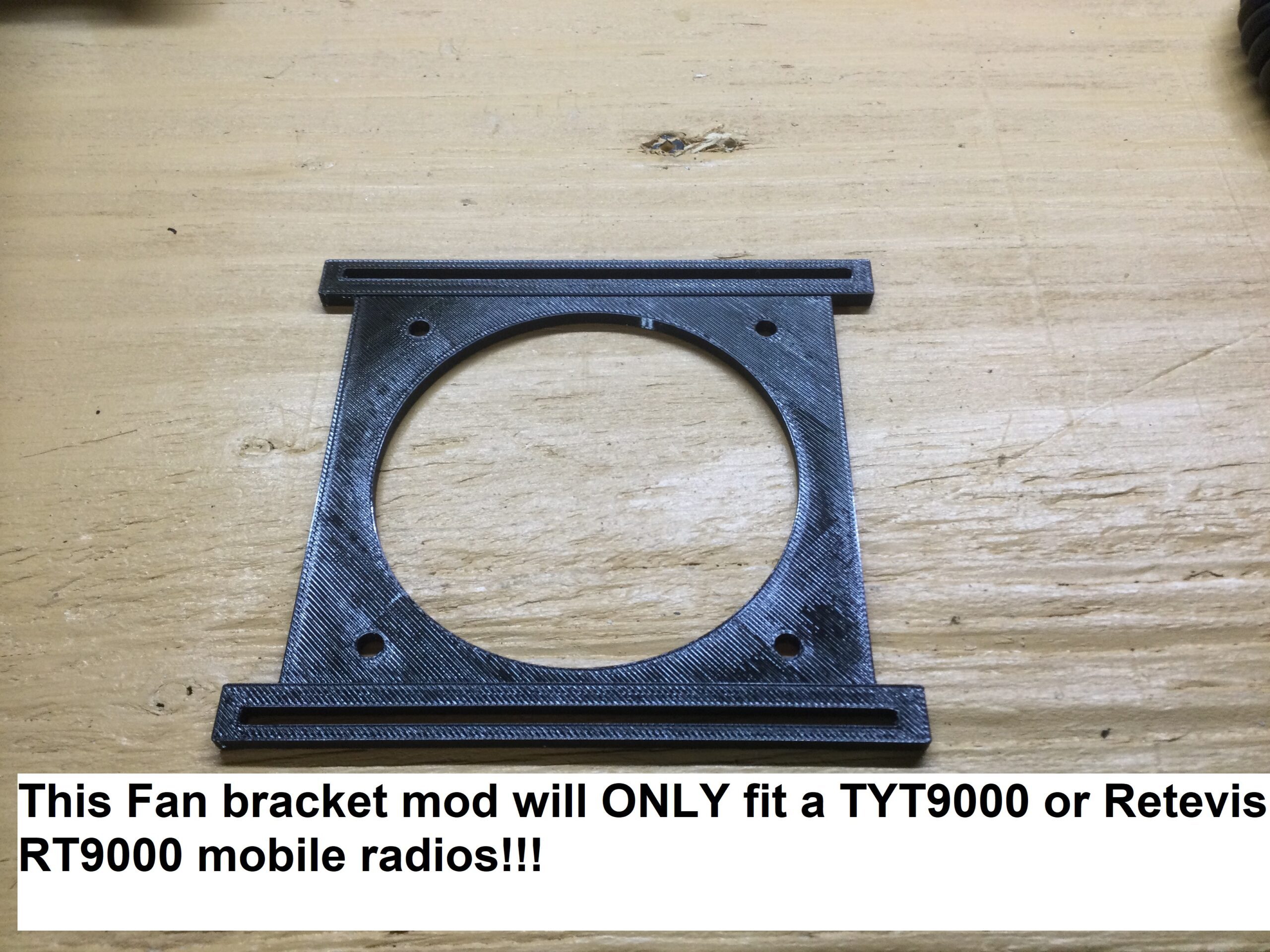

(1) fan mod bracket to hold and mount a 80mm fan to a TYT9000 or Retevis RT9000d mobile radios!, The 80mm Fan is sold separately!!!

No hardware is included (bolts, nuts, washers,etc.)!!!

The bolts, nuts, washers, 80mm fan that are need and are sold separately are:

---

Bolts, nuts, washers, fan parts list that are needed that are sold separately are:

If using TYT9000 or Retevis RT9000 mobile radios you will need (if you are going to be using two radios) (8) m4x.7x18mm and (8) washers which are 1/8×3/4 which is sold separately!!

The shelf will need (4) 8-32×1 with nuts and with (4) 1/8 x 3/4 washers which is sold separately!!

The shelf is fitted for the TYT9000 or Retevis RT9000 radios OR if you need a longer shelf let me know I can make one for you at no additional cost!!!

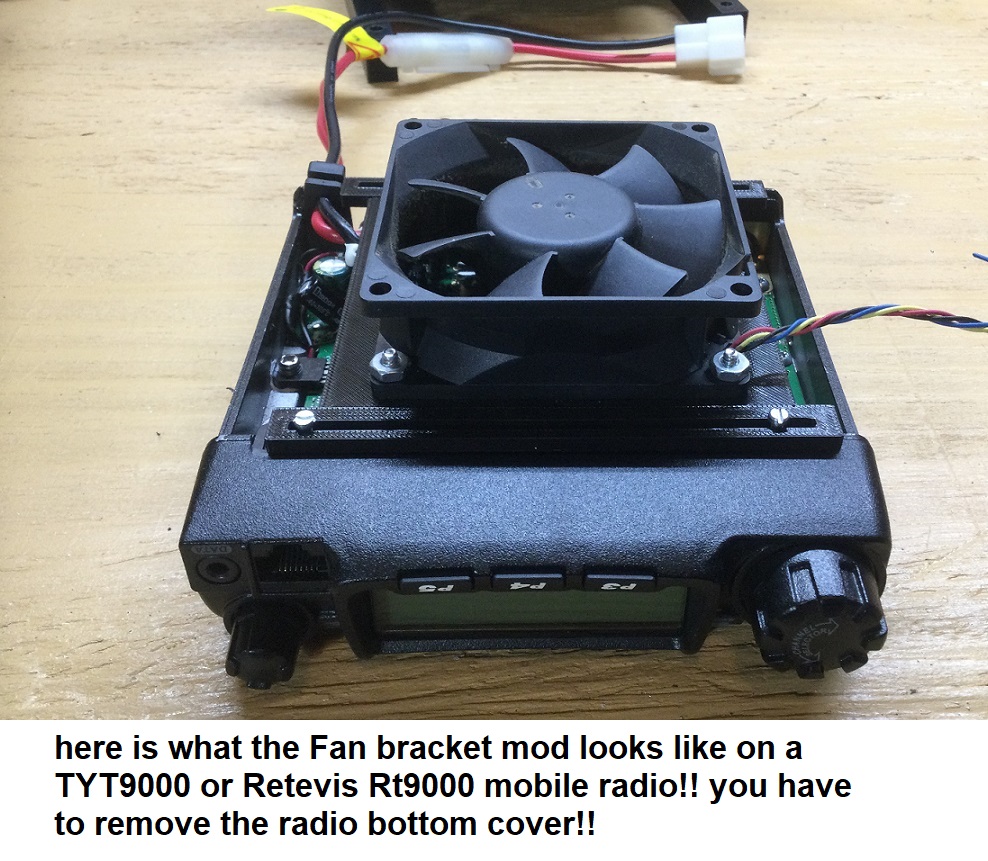

The fan bracket mod will ONLY fit the TYT9000 or Retevis RT9000 radio, you will need the following:

The fan size that will fit the bracket is a 80mm fan, which is sold separately!!

The 80mm fan bolt size to mount the fan to the bracket are  (4) 6-32 x 1/2 with nuts which are sold separately!!

The bolts to fit the fan mod bracket to the radio (remove radio bottom cover) are (4) m2.5x9mm which is sold separately!!

---

YouTube videos:

How to assemble the gmrs/ham mobile radio repeater and/or base station rack YouTube video:
https://youtu.be/_iND4IkDYQ4

YouTube video part 1:
https://youtu.be/-miOFzWg-ug

YouTube video part 2:
https://youtu.be/xhlEWhcHnKI

using it as a “node” one standalone radio YouTube video:
https://youtu.be/gxTUYhSp0G8

Fan bracket mod YouTube video:
https://youtu.be/xioe5eS7IlU
