Description

NOTE: This is a 3d printed!!! I make them per order!! So there will be 3 days (or sooner) delay after payment is received before it is shipped!!!

---

How to pay:

Zelle payment are accepted, More info and how to do that here:

https://www.gmrstwowayradio.com/forum/viewtopic.php?t=175

OR

PayPal payment are accepted,  (sorry there will be a $5.00 add on fee for using this service), email me and I will send you the info on how to do that: [email protected]

---

I am NOT responsible for lost or stolen packages!!!

All shipments are shipped using USPS with tracking number to the address you provided when ordering, SORRY can NOT ship to P.O box address!!!

I have no control over your package once it is handed/placed/given to the USPS!!!

If the tracking link on my site don’t work or update, you can copy and paste the tracking number on USPS website, click here to do that!

---

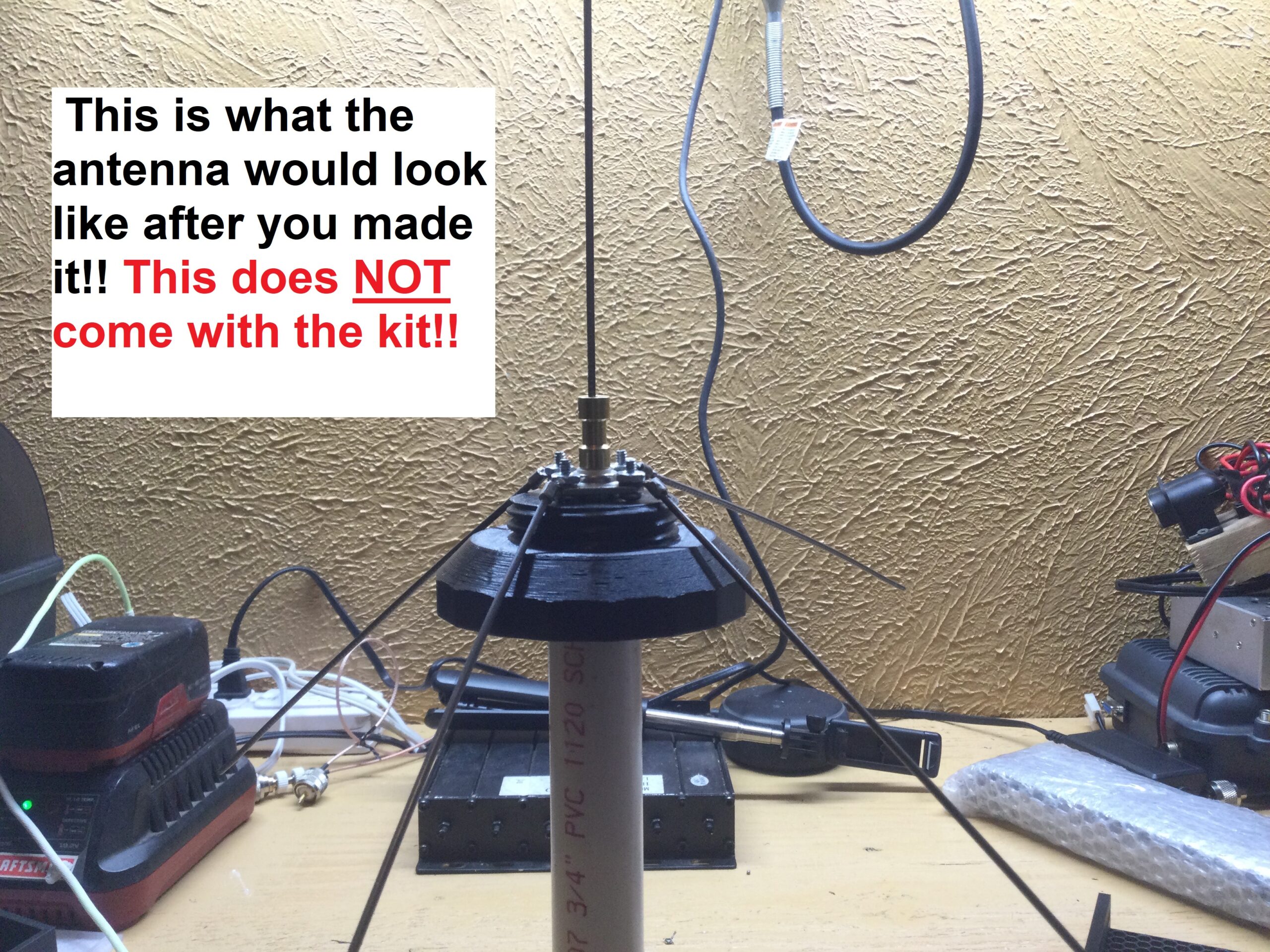

This is a 3d printed DIY/build your own GMRS/Ham 1/4 wave antenna kit for your repeater and/or base station!!!

YouTube videos will be updated as I go!!!

Part 1 YouTube video:

https://youtu.be/262-YXb1wpE

Part 2 how to make/build antenna for housing kit YouTube video:

https://youtu.be/B8o9sRv-95s

How to assemble housing YouTube video:

https://youtu.be/Woi0ISpu7qg

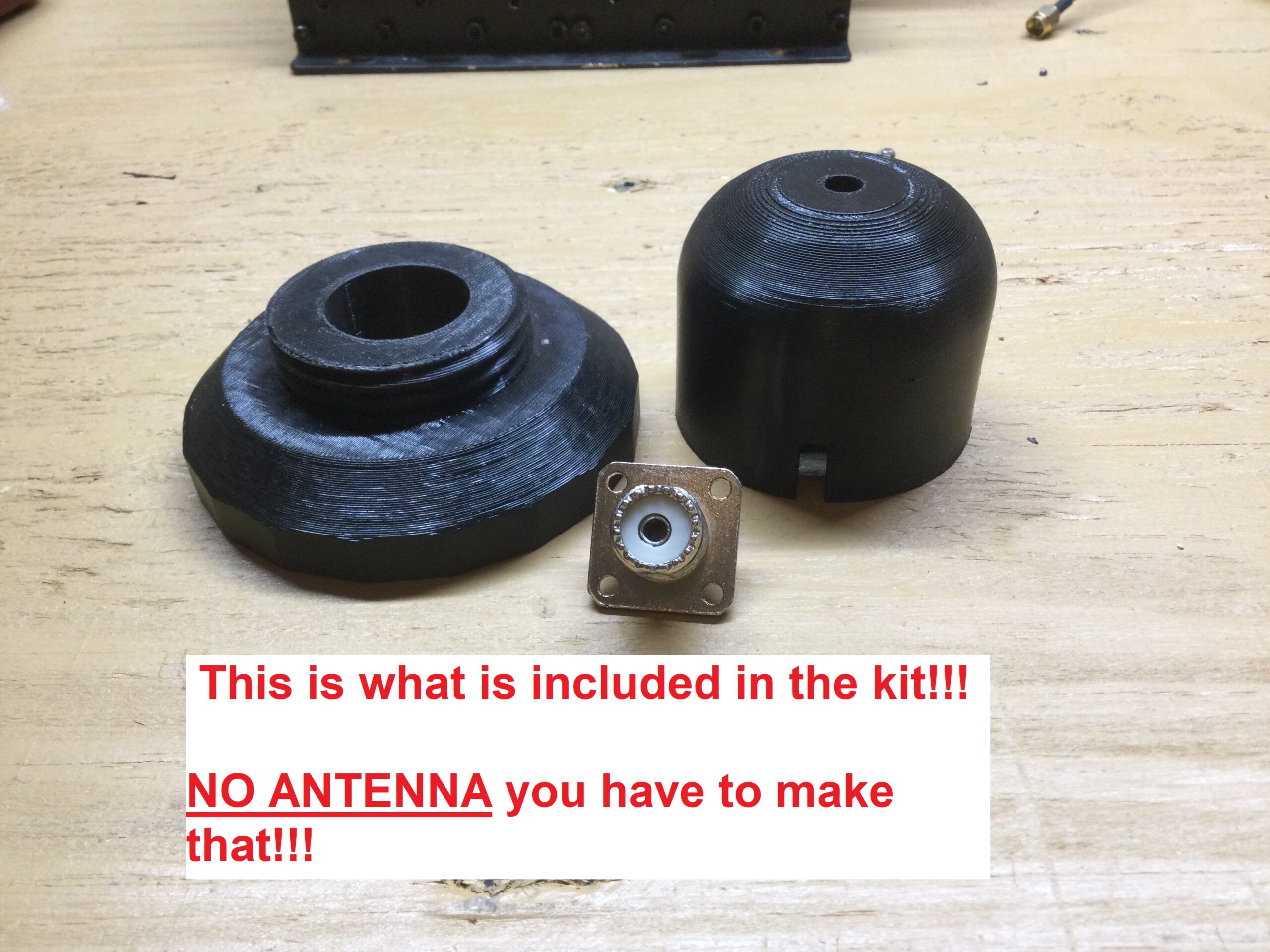

The package will include the following:

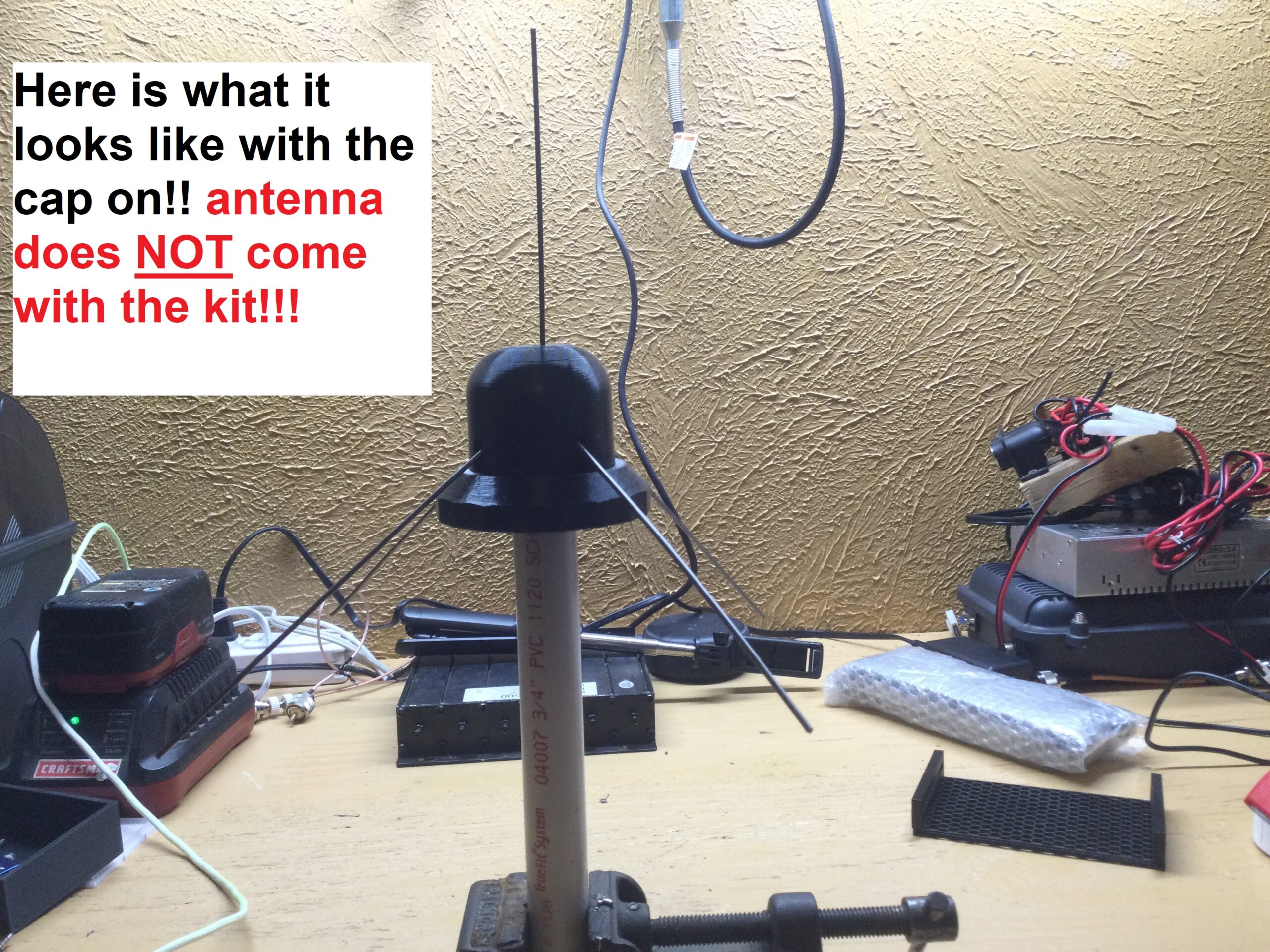

(1) Top (plastic housing, which screws onto the bottom housing) black in color

(1) bottom (plastic housing, with a hole for a 3/4 inch PVC pipe for mounting) black in color

(1) so-239 connector

NO HARDWARE!!!

NO ANTENNA OR GROUND PLANE YOU HAVE TO MAKE THAT INFO ON THAT BELOW!!!

---

NOTE: plastic is for outside, however I highly recommend spraying it with a clear coat for plastic that has UV resistance in it!! I would put silicone around the opening where the antenna comes out too!!

Here is a link to that type of clear coat spray paint NOTE it don’t say on the website that it’s UV resistance, but it does say that on the can!!

Clear coat spray paint

Parts that are NOT include are:

(4) #6 14-16AWG ring terminal which fits a 2.17mm steel rod diameter (if you don’t want to solder the ground plane rods to the so-239 connector, your local hardware store should have this) link to this: https://www.gardnerbender.com/en/p/20-103/16-14-AWG-2-mm-sq-Vinyl-Insuled-Ring

(4) 6-32 with nuts (if you don’t want to solder the ground plane rods to the so-239 connector, your local hardware store should have this)

(1) 3mm x 3mm Coupling Coupler (if you don’t want to solder antenna onto So-239 connector, your local hardware store may have this)

You have to make the antenna and ground plane which is a steel rod that can be a steel coat hanger wire, which is 2.17mm in diameter!!

(1) foot of 3/4 inch PVC pipe this pipe fits into the bottom!! Then you would use a U-bolt to mount it to your mast!!

Use this online 1/4 wave calculator to get the length of the rods you will need for the antenna and ground plane:

https://m0ukd.com/calculators/quarter-wave-ground-plane-antenna-calculator/
