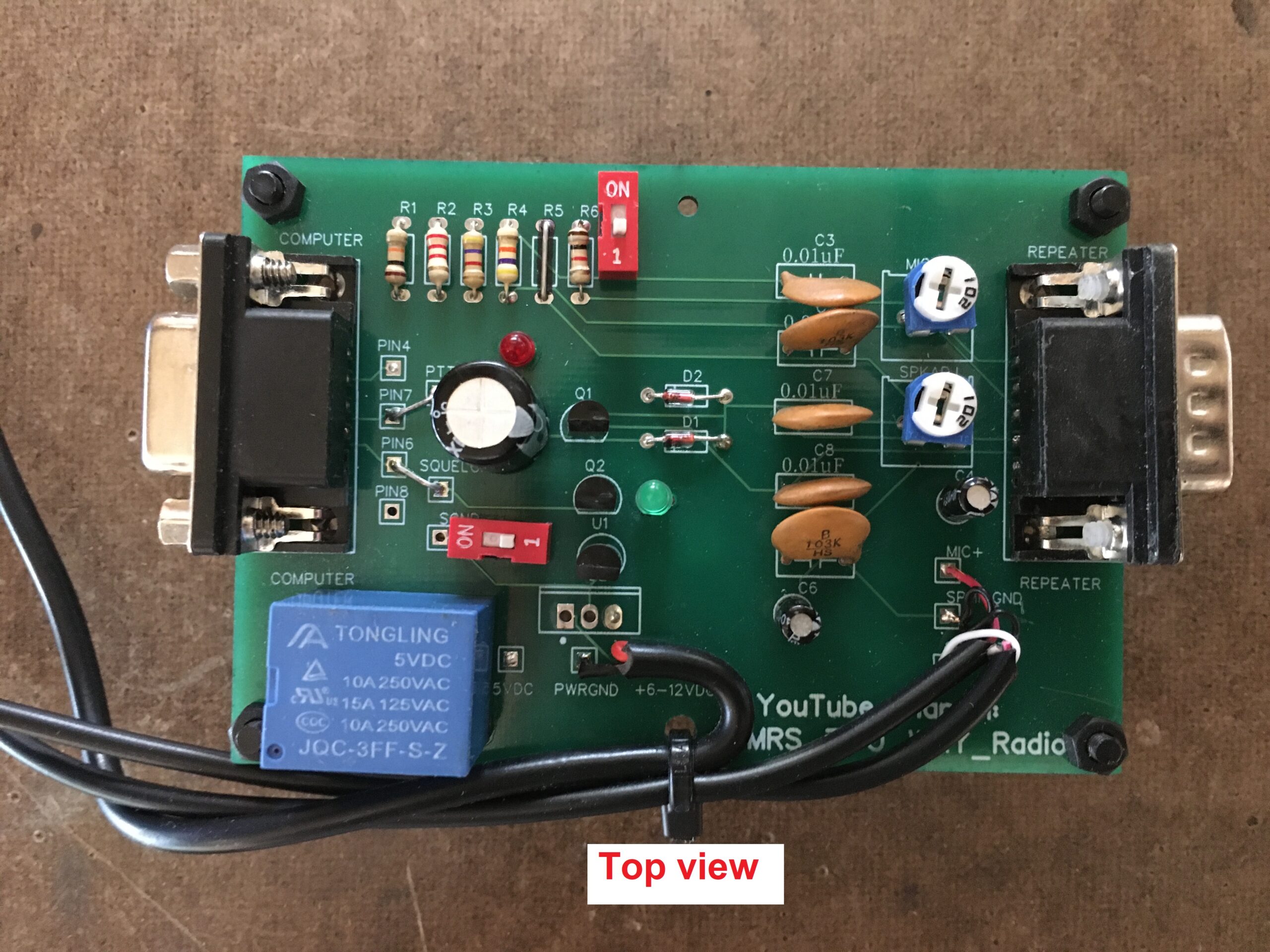

Top side view

interface board ONLY for Retevis RT97S or Midland MXR10 GMRS two-way radio repeaters!

(13 customer reviews)

$60.00

1 in stock

$
SKU: 9710 Category:

Description

This interface board will be Discontinued soon!!! So you better get one asap!!! The “new” version of this board will cost more!!!!

link to “new” version: click here for new version

NOTE: This will NOT work with the retevis RT97L!!!!!

Lead time: 1 week (or less) after payment been received!!

Holidays/weekends can add more of a delay too!!

if you signed up for email notification when its back in stock make sure you check your spam folder for that notification!!

How to pay:

Zelle payment are accepted, More info and how to do that here:

https://www.gmrstwowayradio.com/forum/viewtopic.php?t=175

OR

PayPal payment are accepted,  (sorry there will be a $5.00 add on fee for using this service), email me and I will send you the info on how to do that: [email protected]

YOU MUST SEND ME THE EXACT AMOUNT!!! DO NOT LEAVE OFF THE CENTS!!! sorry I will not ship intill the differnce is paid!! So double check the amount you are sending!! THANK YOU

questions about shipping,what else is need,how fast you will get it, etc watch this video:

https://youtu.be/pnSQ7nCK11w

You want to hear and TEST the interface board in action!! watch this video to see how to!!

https://youtu.be/F2wkcvp29Sw

 I am NOT responsible for lost or stolen packages!!!

All shipments are shipped using USPS with tracking number to the address you provided when ordering,

SORRY, can NOT ship to P.O box address!!!

I have no control over your package once it is handed/placed/given to the USPS!!!

If the tracking link on my site don’t work or update, you can copy and paste the tracking number on USPS website, click here to do that!

Package Includes:

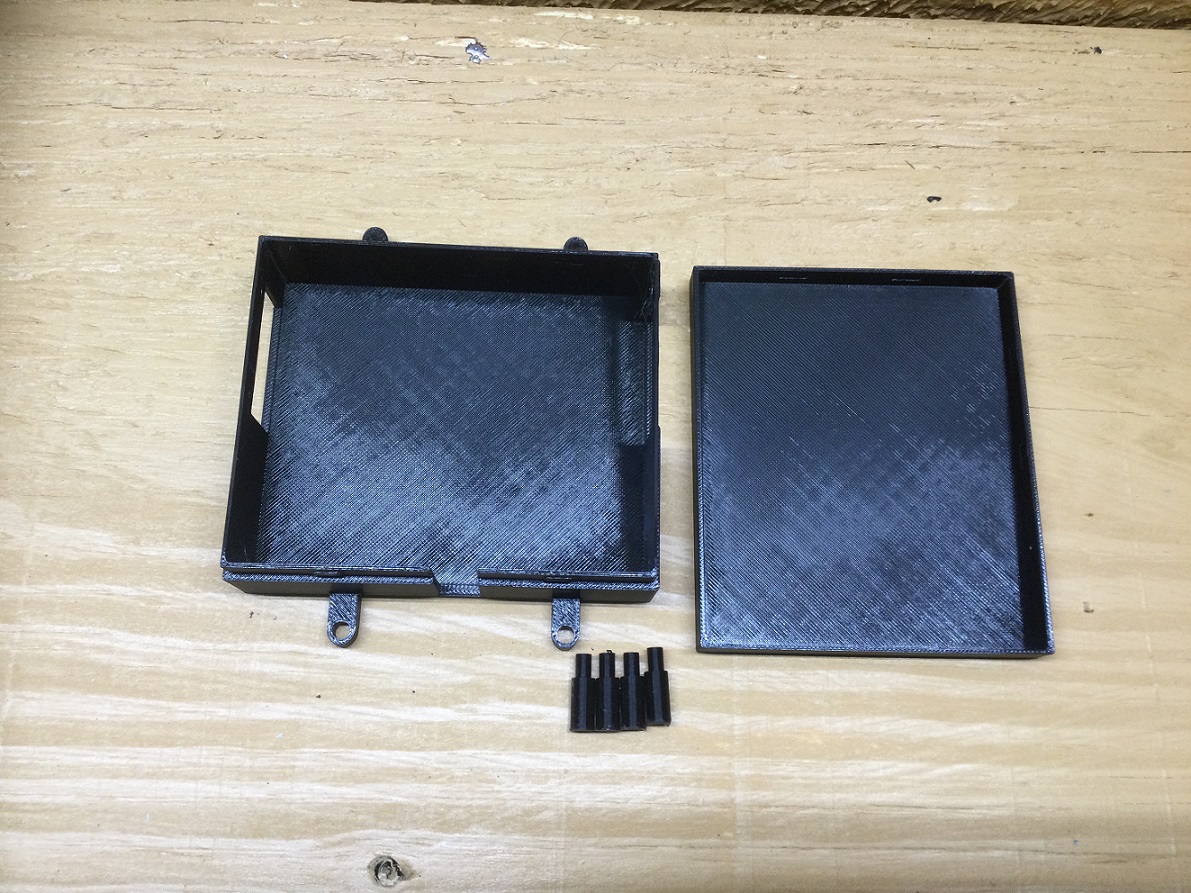

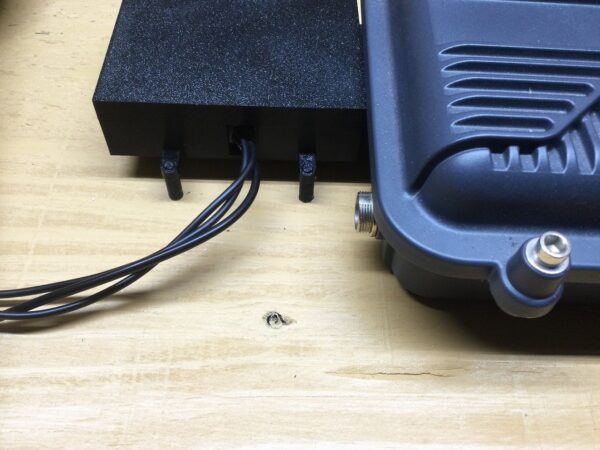

  • 4x plastic standoffs (standoffs go underneath the tabs you can use superglue to glue them in place, but that is not needed, see picture) the lid just snaps on!!
  • 1 DC wall adapter power supply which is solder onto circuit board (see picture)
  • audio cables which are soldered to the circuit board (one is speaker output and one is microphone input). The length of each cable is about 19 inches (see picture)

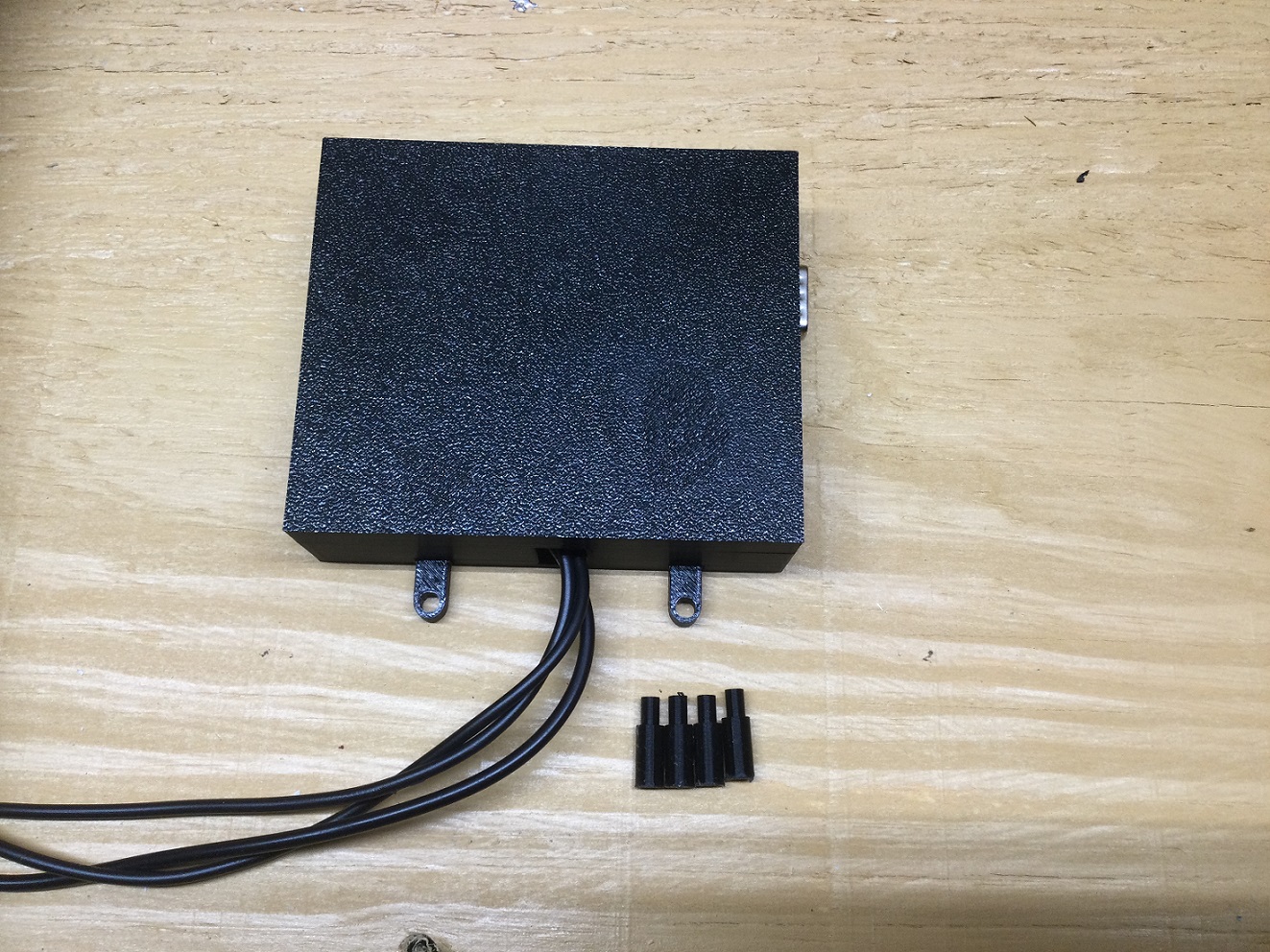

  • This interface board will be installed in an enclosure/box! The box is for indoor use only!!

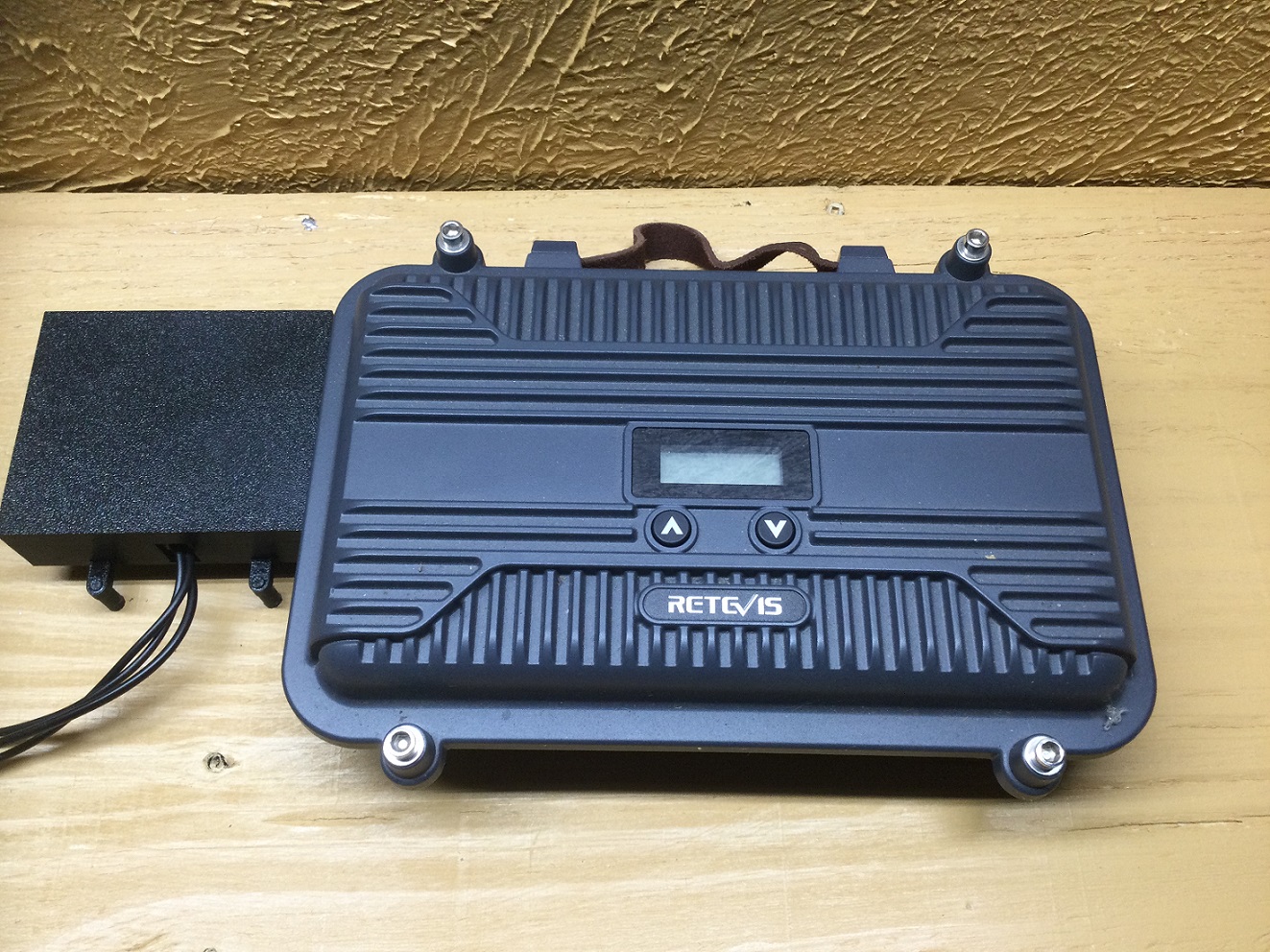

This interface board is plug and play (NO soldering, wiring, etc.) ONLY for Retevis RT97s (NOT RT97 MUST be the RT97S model) or the Midland MXR10 GMRs two-way radio repeaters! Those two repeaters have a DB9 on the side of them, this interface board plugs into the computer and repeater! So you can run programs on the computer like date & time, weather announcements, repeater ID, Zello and this can broadcast over your two-way radio air waves and/or over zello! Also, it lets you have remote DTMF tones functions!

Please read the ALL the FAQ’s BEFORE BUYING on my forum:

interface board forum FAQ’S/help/setup link

What you need to buy separately for interface board to work!!!

I highly recommend using USB sound card!! I have brand-NEW computers and the sound card in them didn’t have good sound quality for this setup!!

1). You need a computer that is running Windows 8 and higher for the software the interface board uses, This DON’T need to be a top of a line it can be an older one. The computer software that is need to be uses on the computer does NOT require a fast or a computer with high graphics!

2). Here is the USB sound card I use!! (highly recommend using a USB sound card)

USB sound card eBay link

3). You will also need a USB to DB9 adapter (unless your computer is old enough and has one, then you won’t need one)

USB to DB9 adapter eBay link

if you want to try your computer built in sound card, but it only has ONE headphone jack, then you will need this adapter:

Convert 1 to 2 headphone adapter cable eBay link

My YouTube video playlist on setup/help/troubleshooting/for this interface board:

https://youtube.com/playlist?list=PLsgwiBVJqD2ehOM0a6nk6M4oMF-VeKKgo

Setup Guide.pdf

Download(781 KB)

An easy step-by-step setup guide with video links!!!

Setup guide video.mov

Download(98 MB)

Here is a setup guide video. This shows you ALL the steps on getting the software below all setup and working!

Troubleshooting/help.pdf

Download(165 KB)

Here is a troubleshooting/help with video links and information on some of the problems that may happen.

Repeater ID software

Download(5 MB)

Here is the software for repeater ID

Com port sharing software

Download(10 MB)

Here is the com port sharing software so you can run more than one program at a time!

USB to DB9 windows driver

Download(643 KB)

This is the windows 10/11 USB to DB9 driver, This will NOT work with FTDI cables!!

Zello.exe

Download(3 MB)

This is the right version of zello you need! This version can be set for gateway mode!!

Date & time & weather announcements

Download(5 MB)

Date & time & weather announcement's software.

Sound example of Zello playing over two-way radio

Download(688 KB)

Here is a sound example of zello playing over two-way radio! Of course, this depends on how loud you have your sound setup for with the software that is being used with the interface board.

Sound example of two-way radio playing over zello

Download(6 MB)

Here is a sound example of a two-way radio playing over zello! Of course, this depends on how loud you have your sound setup for with the software that is being used with the interface board.

Linking repeaters together using Zello

Download(35 KB)

Using this interface board, you can link many Retevis RT97S and/or Midland mxr10 repeaters together using zello!! This is helpful when needing more distance!! Each repeater you want to link will need an interface board and a mini PC or Raspberry Pi 3b+, etc. Also to use zello you must be able to get internet at the repeater site!

interface board Specifications

Download(41 KB)

Here are the Specifications for the interface board.

Ineterface board DB9 connector pinout

Download(51 KB)

Here is the pinout of the DB9 connector that is on the interface board.
