Description

Interface board is built and test and 3d box printed PER ORDER, so Lead time: 1 week (or MAYBE less) after payment been received!! Also, if you are ordering TWO interface board, you must do that in TWO separate orders I have to ship them in separate boxes due to the size of the box and insurance!!!

Holidays/weekends MAY add more of a delay too!!

If you signed up for email notification when it’s back in stock, make sure you check your spam folder for that notification!!

How to pay:

Zelle payment are accepted, More info and how to do that here:

https://www.gmrstwowayradio.com/forum/viewtopic.php?t=175

OR

PayPal payment are accepted,  (sorry there will be an $5.00 add on fee for using this service), after checking out email me with total price and I will send you the info on how to do that: [email protected]

I am NOT responsible for lost or stolen packages!!!

All shipments are shipped using USPS with tracking number to the address you provided when ordering, SORRY can NOT ship to P.O box address!!!

I have no control over your package once it is handed/placed/given to the USPS!!!

If the tracking link on my site don’t work or update, you can copy and paste the tracking number on USPS website, click here to do that!

This will work with 3 repeaters models:

Midland MXR10

RetevisRT97S

RetevisRT97L

May also work with other repeaters if you know your repeater pinout, and you can make an adapter for it!!

YouTube video here: https://youtu.be/Qz7pIhgBO9Y

This interface board is plug and play (NO soldering, wiring, etc.) ONLY for Retevis RT97s (NOT RT97 MUST be the RT97S model) or the Midland MXR10 or Retevis RT97L GMRs two-way radio repeaters! Those three repeaters have a DB9 on the side of them, this interface board plugs into the computer and repeater! So you can run programs on the computer like date & time, weather announcements, announcements, repeater ID, Zello and this can broadcast over your two-way radio air waves and/or over zello, using a computer ( laptop, mini pc,etc) or Raspberry Pi.

Please read the ALL the FAQ’s BEFORE BUYING on my forum NOTE: SETUP is the same as the RT97S/Midland mxr10 interface board:

Mic and speaker volume on the RT97L set to halfway level!!!

Interface board forum FAQ’S/help/setup link

here is a FULL setup video:

FULL software setup video

You must do ALL the steps right, so if you are having problems, watch this video:

https://youtu.be/U7OSO4upbmw

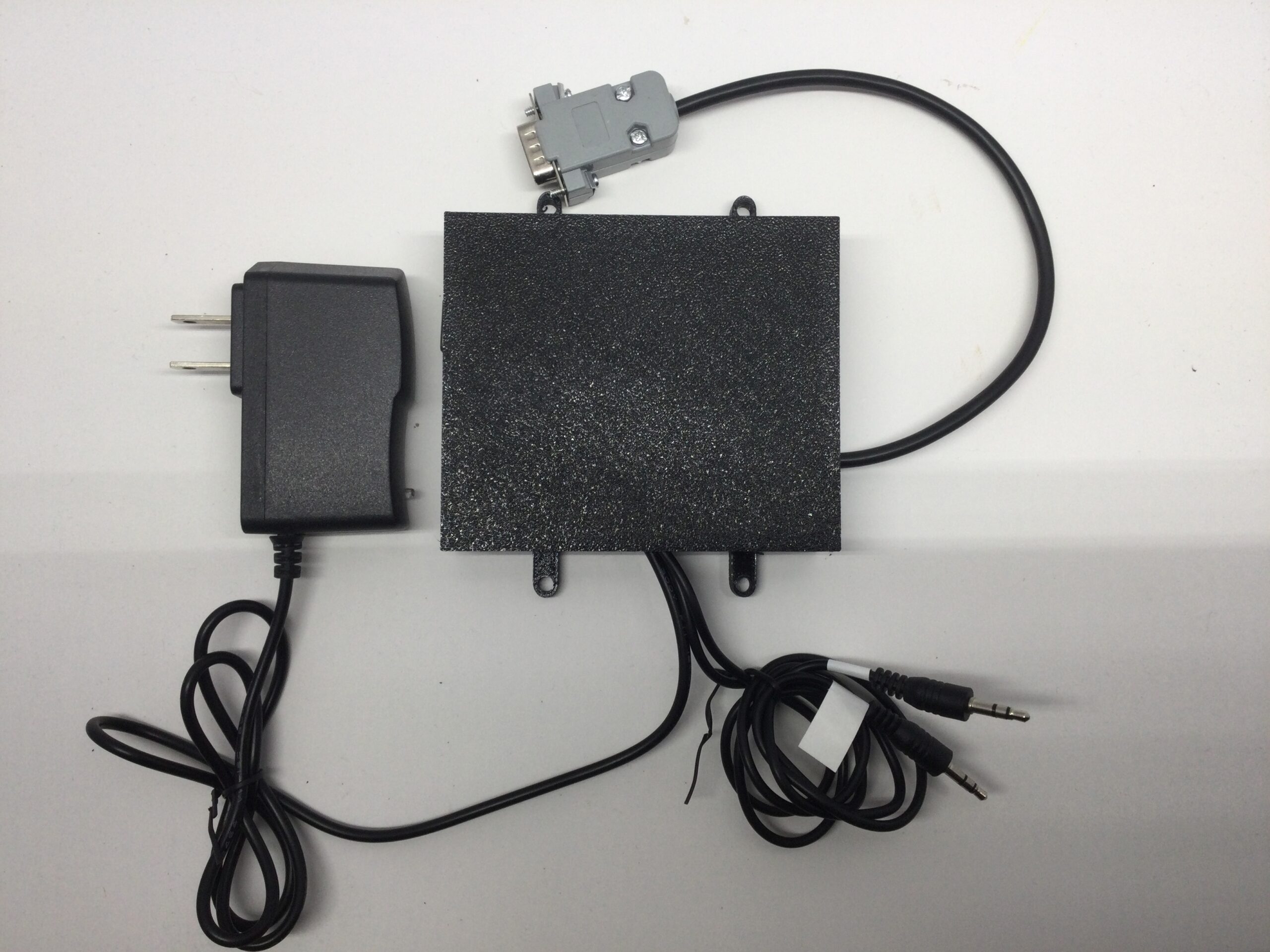

Package Includes:

• about 12” DB9 cable that is solder to board, This plugs into the repeater (see picture)!!!
• 1 DC wall adapter power supply which is solder onto circuit board (see picture) remove wall adapter and connect power direct to a 12dc volt solar system!!
• audio cables which are soldered to the circuit board (one is speaker output and one is microphone input). The length of each cable is about 19 inches (see picture)
• This interface board will be installed in an enclosure/box! The box is for indoor use only, box has 4 mounting tabs, so box can be mounted! (see picture)

What you need to buy separately for interface board to work!!!

I highly recommend using USB sound card!! I have brand-NEW computers and the sound card in them didn’t have good sound quality for this setup!!

1). You need a computer (laptop, mini pc, etc.) that is running Windows 8 and higher for the software the interface board uses, This DON’T need to be a top of a line it can be an older one. The computer software that is need to be uses on the computer does NOT require a fast or a computer with high graphics!

2). Here is the USB sound card I use!! ( you must use this USB sound card!! any other sound cards may cause problems or not work at all!!)

USB sound card eBay link

3). You will also need a USB to DB9 adapter (unless your computer is old enough and has one, then you won’t need one)

USB to DB9 adapter eBay link

My YouTube video playlist on setup/help/troubleshooting/for RT97S/midland MXR10 interface board, which is the SAME for the RT97L:

https://youtube.com/playlist?list=PLsgwiBVJqD2ehOM0a6nk6M4oMF-VeKKgo
