Description

sign up to get notified when this gets back in stock!!!!!

NOTE: after payment been received, item will be shipped in about 48 hours or less unless it’s a weekend or holidays can add more of a delay to shipping!!

ZELLE PAYMENT ARE ACCEPTED! More info and how to do that here:

https://www.gmrstwowayradio.com/forum/viewtopic.php?t=175

To send money using PayPal, email me and I will send you the info on how to do that: [email protected]

I am NOT responsible for lost or stolen packages!!!
All shipments are shipped using USPS with tracking number to the address you provided when ordering, SORRY can NOT ship to P.O box address!!!

I have no control over your package once it is handed/placed/given to the USPS!!!

If the tracking link on my site don’t work or update, you can copy and paste the tracking number on USPS website, click here to do that!

****product Appearance MAY vary from pictures!!!**** (different color of screws could be used)

This is need for the TYT9000D ,Retevis RT9000D, GMRS (or HAM version) two-way radio, this cable will NOT work with any other radios!!. It will let you add a DB9 port onto the radio!!! This does NOT include interface board or radio that is sold separately!!! Very easy to install you take the cover off the radio and plug in the cable, PLUG and PLAY, no soldering!!!

This fits much better than the “white” plug ones that are out there!!!

Video on installing it here: https://youtu.be/DC2IrN1lxXA

NOTE: To have this work as a full repeater, you will also need a some type of interface board too!!! The cable(s) themselves do NOT make it into a repeater!!! The cables give you the connection that are need for an interface board!! Due to time, sorry, I am unable to answer questions on how to hookup/make DIY interface board.

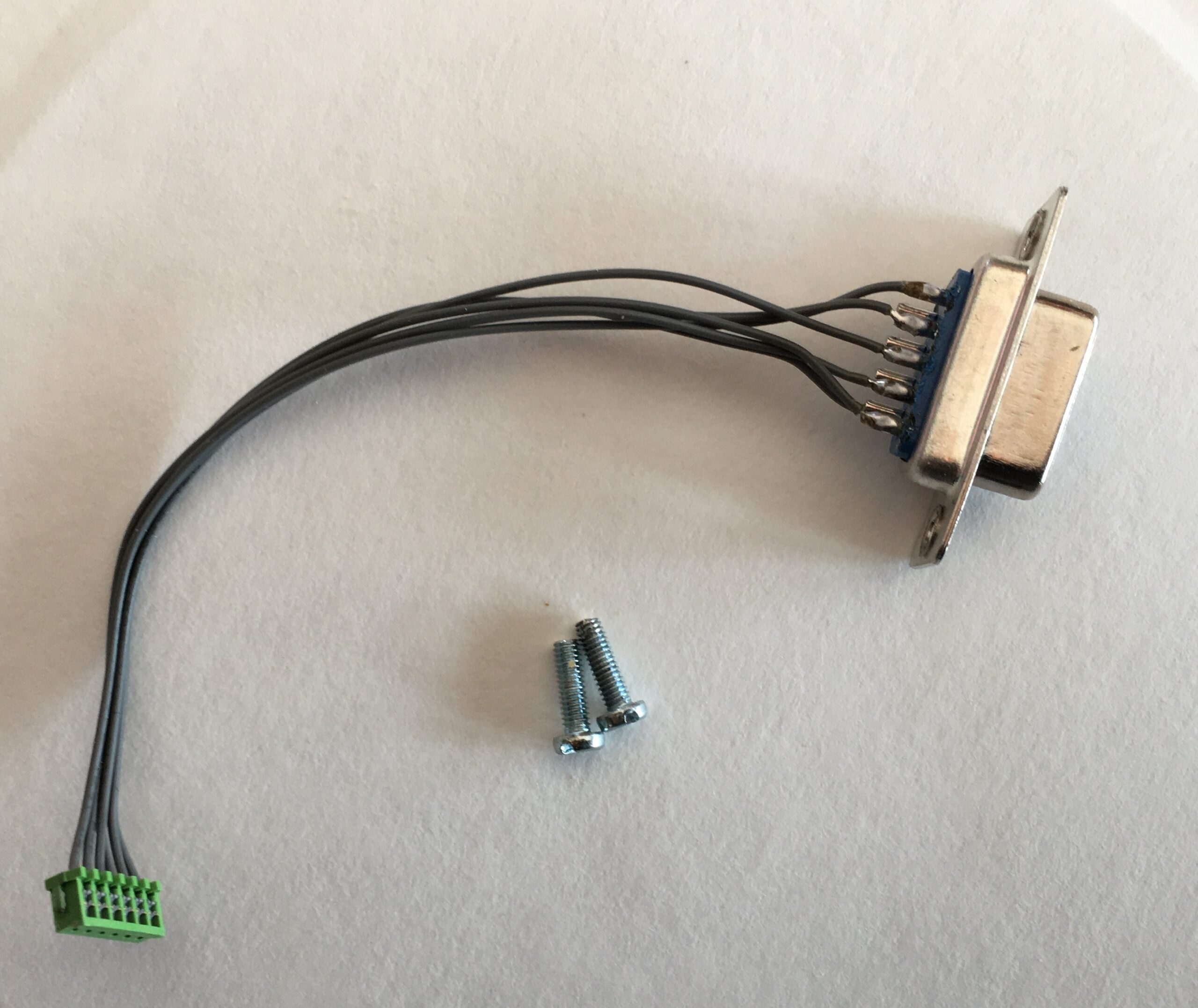

EACH Cable package includes:

NOTE: You MAY have to make the holes bigger on the DB9 connector that is on the cable due to different screw spacing on the radios!

ONE DB9 connector cables with plug on the other end so it can be plugged onto the circuit board!! NO SOLDERING!!

Two screws ( no drilling or taping need)

Two Jack screws ( drilling AND taping need watch this video for more info https://youtu.be/57jtC3BLPlc )

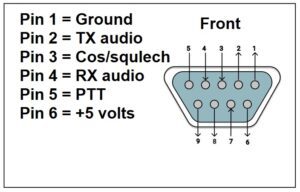

Here is the pinout of the DB9 plug ( front means as you are looking at the connector)

in this video, I show you how I have the radio’s setup:

https://youtu.be/nJzuXqiyBi4

NOTE: quantity shows how many “single repeater” cables NOT pairs that are in stock ready to ship!!! I sometimes sell this on another sites, I try to update the quantity on here asap!!!
